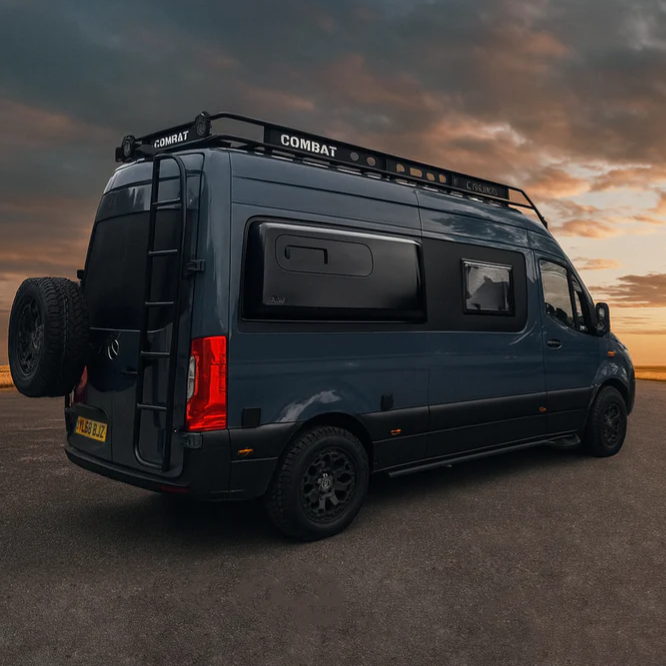

Adventura Mercedes Sprinter LWB Side Pod
Price range: £634.00 through £1,618.00

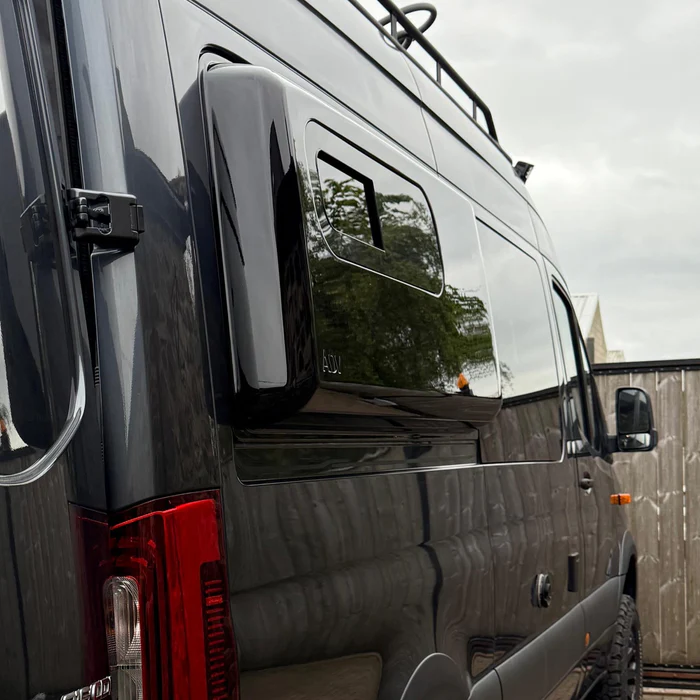

These ADV side pods are designed for builders who want a proper transverse bed without sacrificing interior living space. By extending the van’s body, they give you the extra width needed to sleep sideways and free up more room for storage, seating, or a larger kitchen layout.
Engineered specifically for the LWB Sprinter, both the left-hand and right-hand pods are the same depth (115mm). This maximises sleeping length while still allowing compatibility with the factory Mercedes middle glass, with no need to taper either side to clear the sliding door.
Built using the same high-grade GRP construction and vacuum infusion process as our other ADV pods, they deliver a strong, lightweight, and practical solution for high-end campervan builds.
After internal fit-out, you’ll achieve up to 6ft 7in of usable cross-van bed space.
- Up to 6ft 7in cross-van sleeping length
- Equal-depth pods for maximum bed width
- Can be installed alongside factory Mercedes middle glass
- No sliding door interference
- Fits Left-Hand Drive and Right-Hand Drive vehicles.
PLEASE CONTACT US IF YOU REQUIRE A FITMENT SERVICE.
Fitting services available - contact our team for details
- Flexible Finance Options
- Fast Delivery
- Secure Payments
- Fitting Services
Description
| Specification | LWB Sprinter Side Pods | MWB Sprinter Side Pods |
|---|---|---|
| Van Compatibility | LWB Sprinter 906/907 LWB VW Crafter 2006-2017 |
MWB Sprinter 906/907 MWB VW Crafter 2006-2017 |
| Drive Orientation | LHD & RHD | RHD only |
| Pod Depth | 115mm | RHS: 125mm LHS: 45mm |
| Max Cross-Van Sleeping Length *Internal fit-out dependent |
6ft 7″ | 6ft 5″ |
| Sliding Door Interference | Pods finish behind the sliding door when fully open. | The sliding door will clear the passenger-side pod with most internal blind frames fitted – no extended door guide should be necessary.
Note: Sliding door window blind depth & positioning may cause clearance issues. Please check clearance prior to cutting any holes in your van. |
| Compatible with Factory Glass | Yes – Compatible with factory Mercedes middle glass. | Yes |
| Material | High grade GRP | High grade GRP |
| Weight Per Pod | 6.5kg | RHS: 7.8kg LHS: 5.9kg |
| Estimated Install Time | Pods can be installed within a few hours. Adhesive must cure for at least 30 hours before moving the vehicle. | Pods can be installed within a few hours. Adhesive must cure for at least 30 hours before moving the vehicle. |
| Tools Required | See side pod installation video / written installation instructions. | See side pod installation video / written installation instructions. |
| Professional Install Required? | We recommend a professional install if you have little or no previous experience working on vehicles & cutting metal. | We recommend a professional install if you have little or no previous experience working on vehicles & cutting metal. |
| What’s Included | Pods as described at purchase (pair or single) 1 x Handling & paint manual |
Pods as described at purchase (pair or single) |
| Fixings Included? | No | No |
| Warranty | 1 year | 1 year |
Additional information
| Weight | 8 kg |
|---|---|
| Side | "Right", "Left", "Pair" |
| Sliding Glass | "With", "Without" |
