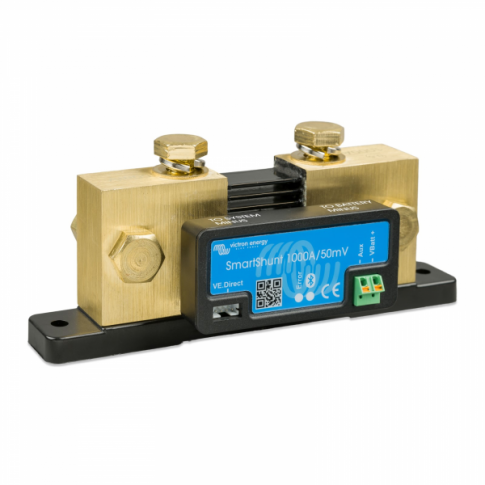

Victron 1000A 12V/24V/48V Battery Monitoring SmartShunt with Inbuilt Bluetooth

Description

This Victron 1000A VS series SmartShunt uses a high-precision battery shunt designed to expertly measure vital charging and performance data for your batteries. This smart model features additional advanced functions such as Bluetooth communication ability, a secondary input for optional monitoring of an auxiliary battery bank, and an extremely low current draw from the battery bank (0.7Ah per month for a 12V system). Statistics such as battery voltage, charge / discharge current as energy flows in to and out of the battery, Amp Hours consumed, state of charge and time-to-go can be viewed and the settings can be programmed using the inbuilt Bluetooth via any Bluetooth-enabled mobile device, such as a smartphone or tablet.

System Specifications:

• Nominal battery voltage: 12V / 24V / 48V
• Supply voltage range: 6.5 – 70V
• Input voltage range (Auxiliary battery): 6.5 – 70V
• Supply current: 1mA (12V) / 0.8mA (24V)
• Input current range: -1000A to +1000A
• Operating temperature range: -40°C to +50°C
• Voltage measurement accuracy: ±0.3%
• Current measurement accuracy: ±0.4%
• Dimensions: 120 x 68 x 54 mm
• Weight: 1100g
