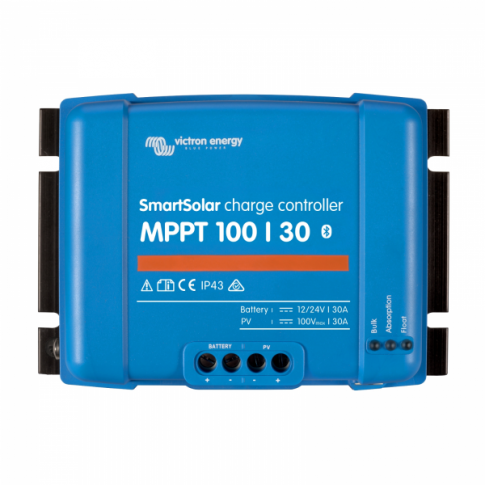

Victron SmartSolar MPPT 100/30 Solar Charge Controller

Description

This Victron 100V 30A MPPT controller comes from the intelligent SmartSolar range, which uses the latest ultrafast MPPT technology to maximise energy harvest whilst maintaining optimal battery health. This SmartSolar MPPT controller uniquely features built-in Bluetooth, to allow remote system monitoring via any Bluetooth enabled device, in addition to an intelligent Battery Life function.

Specifications:

– The most advanced MPPT technology to ensure high efficiency (> 95%) of your solar system
– Fully automated operation and auto 12 / 24V selection
– 2 pairs of terminals (solar panel, battery) for wires up to 13mm2
– Inbuilt bluetooth
– Max solar panel voltage: 100V
– Max solar panel power: 440W (12V) / 880W (24V)
– Temperature sensor for automatic compensation (-16mV °C resp. -32mV °C)
– Comprehensive electronic protection features
– Communication port: RS232 / TTL for VE Direct accessories
– Self-consumption: 10mA
– Working temperature: -30°C to +60°C
– IEC/EN certified
– Enclosure: IP43 (electronic components) / IP22 (connection area)
– Pollution Degree rating: PD3
– Dimensions: 186 x 130 x 70 mm
– Mounting dimensions: 175 x 75 mm
– Weight: 1.3kg
– 4 x mounting holes for ease of installation
